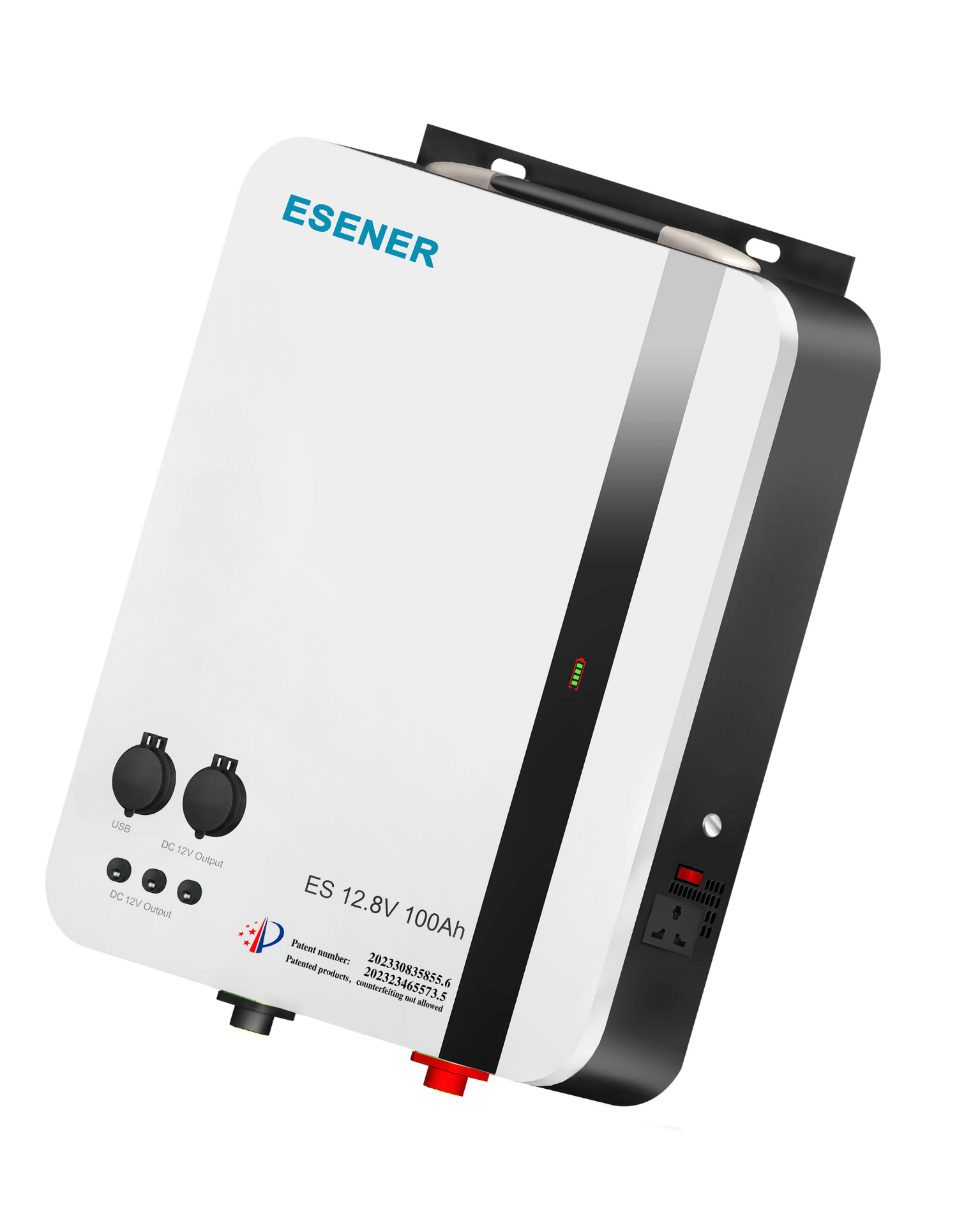

ESENER 1.28kwh 12V Multifunctional Lithium Battery With Built in Emergency Inverter

DUE TO THE WEIGHT AND SIZE OF THE PRODUCT WE ARE GOING TO SEND YOU A QUOTE ON SHIPPING BASED ON YOUR AREA

Power and reliable 3 Year Warranty Excellent high temperature performance

High Cycle Life and Service Life

1C High Performance Lithium Battery

High Energy Density and Conversion Efficiency

Environmentally friendly

Support in Parallel and Series connection (Max 2S2P)

Low self-discharge

Easy wall mount or shelf rack installation

Heavy duty side handles for easy handling and mounting to the wall

Built in protection for over-charge, over-discharge & over-temperature



GET DATA SHEET HERE

Display: None

Parallel/Series: Parallel and series connection up to "2S2P"

Dimensions (WxDxH): 484mm x 420mm x 133mm

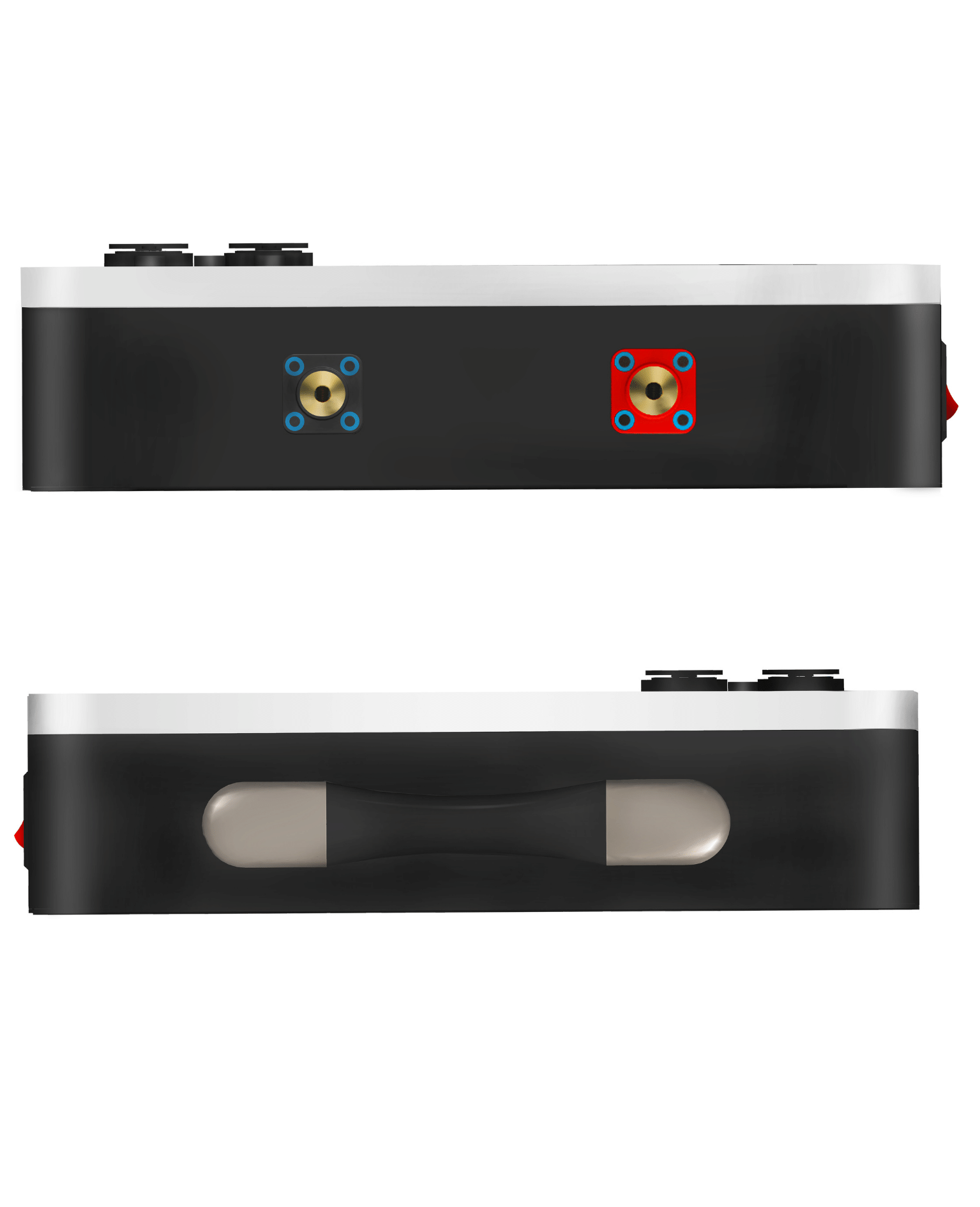

Ports: 1x Positive Socket, 1x Negative Socket, 1x Power switch

Cells: New Li-Ion Prismatic Cells

Design Life: -/+ 10 Years

Cycle Life @ 1C: +/-2200 Cycles @ 100% DOD, Above 4000 cycles @ 80% DOD

Certification: CE, UN38.3, IEC, MSDS

Outer Package Material: Black sheet metal steel case

Operating Temperature: Charging: 0 to 50°C, Discharging: -10 to 50°C, Storage: -10 to 50°CProtection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting





Details you need to know!

Over charge detection function
Over discharge detection function
Over current detection function
Temperature protection
Short detection function
Balance function

The unit has detection functions and as such this data is for informational and diagnostical purposes, it is important to note that the correct settings/parameters be applied to your Inverter based on the information in the batteries user manual in order to protect the battery from over charge and discharge. Over charge and discharge are not covered by warranty.

Warranty

3 Year warranty - Electrical components are dangerous and should not be trifled with - Installation of this unit should only be carried out by a qualified electrician who is able to show identification, valid registration as well as provide an electrical compliance certificate (COC) for the installation. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
