Description
Key Specifications/Special Features:

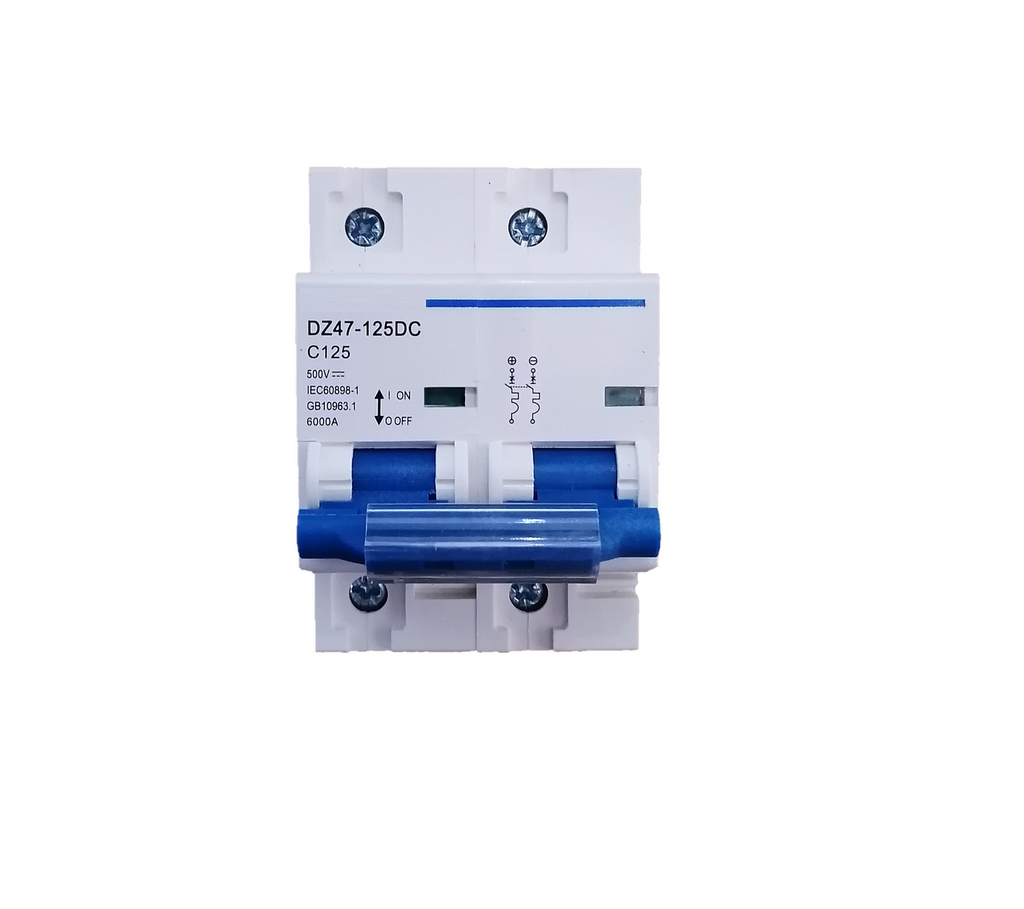

DZ47-125 miniature circuit breakers are used in lighting distribution system or motor distribution system for protecting overload and short-circuit. It has high breaking capacity and can trip quickly. Its case is made with high fire -resistant and shockproof plastic. The product, with long life, is mainly used in DC 12-100V DC circuit for overload and short-circuit protection as well as for un-frequent on-and-off switching electric equipment and lighting circuit in normal case.
Working condition:
Install height: altitude ≤2000m
Ambient temperature:
- Max temperature: +40°c
- Min temperature -5°c
Working condition:
Install height: altitude ≤2000m
Ambient temperature:
- Max temperature: +40°c
- Min temperature -5°c
| Type | DZ47-125-1P | DZ47-125-2P | DZ47-125-3P | DZ47-125-4P |
| Pole | 1P | 2P | 3P | 4P |
| Rated current(A) | 50, 63, 80, 100, 125 | 50, 63, 80, 100, 125 | 50, 63, 80, 100, 125 | 50, 63, 80, 100, 125 |
| Rated voltage(V) |
12-100V DC |
400 | 400 | |
| Frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
| Ambient temperature(°c) | -5~40 | -5~40 | -5~40 | -5~40 |
| Rated breaking capacity(kA) | 6 | 6 | 6 | 6 |
