Description
Digital Multimeter - DT9205A
Product Description
This meter can be used in many fields such as laboratory, factory, workshop and home applications.It is a essential tool for electricians.It can measure DC/AC voltage,DC/AC current,resistance and capacitance. It also can be use for diode and continuity test.
Features:
- 3½ digits, 7segment, Large LCD Display.
- Max display: 1999, Automatic polarity display
- All ranges fully protected.
- Diode assembly test / Transistor P-N junction test/Transistor hFE test
- Continuity test with buzzer sound in circuit.
- Low battery voltage indication.
- Automatic power off.
- Data hold function.
Electric circuit protection.
Specifications:
- Model:DT9205A
- Measuring range:
- Max AC Current:20A
- Max AC Voltage range:750V
- Max DC Voltage range:1000V
- Resistance Measurement:200 Ohm-2000M Ohm range
- Scale degree&Accuracy:
- Showed as in the table
- Function
- Range
- Resolution
- Accuracy
- DC Voltage
- 200mV
- 100uV
- ±(0.5%+5)
- 2000mV
- 1mV
- 20V
- 10mV
- 200V
- 100mV
- 1000V
- 5V
- ±(0.8%+2)
- AC Voltage
- 200mV
- 100μV
- ±(1.2%+3)
- 2V
- 1mV
- ±(0.8%+3)
- 20V
- 10mV
- 200V
- 100mV
- 750V
- 1V
- ±(1.2%+3)
- AC Current
- 20mA
- 10uA
- ±(1..2%+3)
- 200mA
- 100uA
- ±(2.0%+3)
- 20A
- 10mA
- ±(3.0%+7)
- DC Current
- 2mA
- 1uA
- ±(1..2%+5)
- 20mA
- 10uA
- 200mA
- 100uA
- 2A
- 10mA
- ±(2.0%+5)
- Resistance
- 200Ω
- 0.1Ω
- ±(0.8%+3)
- 2000Ω
- 1Ω
- ±(0.8%+1)
- 20KΩ
- 10Ω
- 200KΩ
- 100Ω
- 2000KΩ
- 1000Ω
- 20MΩ
- 10KΩ
- ±(1.0%+2)
- 2000MΩ
- 100KΩ
- ±(5%+10)
- Capacitance
- 2nF
- 1pF
- ±(2.5%+5)
- 20nF
- 10pF
- 200nF
- 100pF
- 2uF
- 1nF
- 20uF
- 10nF
- 200uF
- 100nF
- ±(5%+5)
Power Supply:9V 6F22 battery
Dimension:192x92x32mm
Colour:black

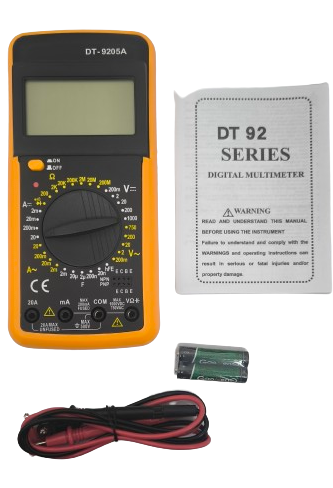

Package included:
- 1 x Digital Multimeter
- 2 x Test Leads line(red&black)
- 1 x Manual
- 1 x Protective Shell.
Unit net weight:305g
Unit packing gross weight:405g
