Description

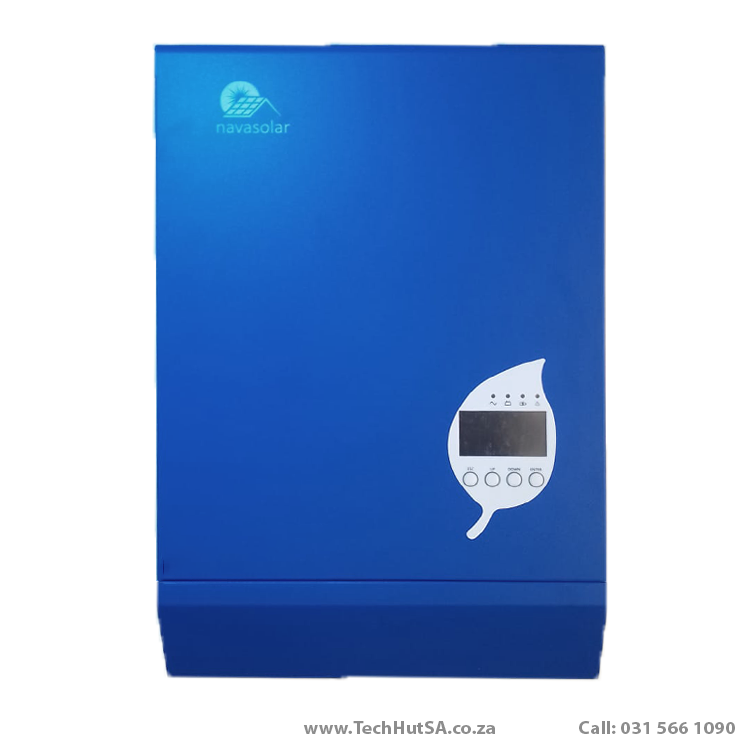

Pure sine wave solar inverter
· Output power factor up to 1.0
· Compatible to AC mains or generator inputs
· Considerable PV input types
· Build-in smart solar charger (PWM/MPPT)
· Battery independent design(5kW)
· Auto restart while AC is recovering
· Configurable AC/Solar input priority via LCD setting
· Selectable input voltage range for home appliances
and personal computer loads
Key Specifications
Model : NV-X5048
Rated Power : 5000W / 5000KVA
Input
Voltage : 208/220/230/240VAC
Selectable Voltage Range : 170- 280 VAC (For Personal Computers) | 90- 280 VAC (For Home Appliances)
Frequency Range : 50 Hz/60 Hz (Auto sensing)
Output
AC Voltage Regulation (Batt. Mode) : 230VAC ± 5 %
Surge Power : 10000W
Effiency (Peak) : 94%
Transfer Time : 10 ms
Waveform : Pure sine wave
Battery And AC Charger
Battery Voltage : 48VDC
Floating Charge Voltage : 54.8VDC
Overcharge Protection : 60VDC
Solar Charger
Maximum PV Array Power : 5500W
MPPT Range @ Operating Voltage : 120~430VDC
Maximum PV Array Open Circuit Voltage : 450VDC
Maximum Solar Charge Current : 80A
Maximum AC Charge Current : 80A
Maximum Charge Current : 80A
Operating Environment
Humidity : 5% to 95% Relative Humidity(Non- condensing)
Operating Temperature : 0°C - 40°C
Storage Temperature : - 15°C - 60°C
