Description

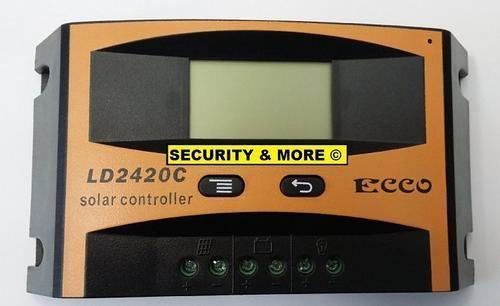

30A Solar Regulator:
Specifications:
- System Voltage : 12V/24V
- Max. Input Voltage of Solar Panel : 55V
- Self-consumption : ≤12mA
- Max. Charge Current : 20A
- Max. Discharge Current : 10A 20A
- LVD : 11.0VADJ 9V .... 12V; x2 24V
- LVR : 12.6VADJ 11V .... 13.5V; x2 24V
- Float Voltage : 13.8VADJ 13V .... 15V ; x2 24V
- Boost Charging : 14.4V; x2 24V Battery Voltage less than 12V start boost charging 2 hours
- Batter Over Voltage Protection : 16.5V ; x2 24V
- Reverse Connection Protection : Yes
- Load Over Current Protection : Yes, each two minutes restart once
- Charge Type : PWM
- Temperature Compensation : -24Mv/ °C for 12V system ; x2 24V
- Working Temperature : -20°C-+55°C
- Terminal Scale : 28-10 AWG
- Waterproof grade IP32
- Size : 168mm x 92mm x 41.5mm
- Net Weight : 320g
